NB-BB-M16F231-4
quote
Share this product:
Share

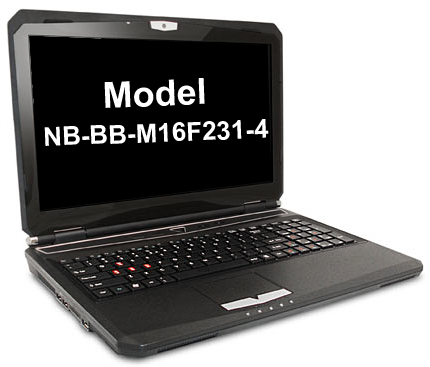

Model NB-BB-M16F231-4 Specification
Operation system support Support Windows 7
Processor  Intel® Socket G2 to support Sandy Bridge Intel Core i7/i5/i3 mobile processors
Chipset  Intel HM67
Graphics & Video Module  NVIDIA® Geforce GTX460M, 1.5GB GDDR5 VRAM
Main Memory
• SO-DIMM slots x 4 for DDR3 1333/1066 MHz if the CPU is four cores
(2 slots on the motherboard front side and 2 slots on the rear side)
• SO-DIMM slots x 2 for DDR3 1333/1066 MHz if the CPU is dual cores
• Maximum 16GB (Up to 4GB each slot)
Display • 15.6" LED-backlit LCD, Full HD (1920 x 1080),16:9
• Brightness controlled by keyboard hot keys
Card Reader  SD/MMC/MS/XD 4-in-1 Card Reader
Hard Disk Drive  Two 2.5" SATA HDD drive bays (No RAID)
Optical Drive  SuperMulti DVDRW drive included
LAN/Modem  Gigabit LAN; no 56K Modem jack
Wireless LAN
Half-height PCIe mini card slot x 1 for WLAN
(The slot is located right beneath the middle cover)
Bluetooth Built-in Bluetooth 2.1+EDR
Built-in CMOS Camera  3.0 Mega Pixels
I/O Ports
• Monitor ( VGA ) : 15 pin D-Sub x 1
• HDMI : 1
• USB 3.0 : 2
• USB 2.0 : 2
• eSATA : 1
• IEEE 1394 : None
• Mic.-in : 1
• Headphone-out : 1
• RJ11 : 0
• RJ45 : 1
• TV-Out : None
Audio
• HD Audio, Realtek ALC888S
• 2 Speakers: 2W x 2 + 1 Subwoofer
• Sound Volume controlled by keyboard hot keys
• Internal Microphone x 1
Short-Cut Keys  Power/Webcam /Windows
Battery Li-ion 9 cells included
AC Adapter  150W, 19.5V/ 7.7A DC, 100~240V AC, 50~60Hz universal
Dimensions 395.4 x 267.7 x 55.6 mm
Weight Approx 5.85 lbs (w/o battery and power adapter)

Specifications are subject  to change without prior notice
