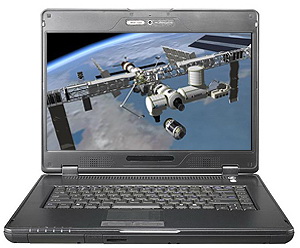

S15C-P2R2GM5H6

Model: S15C-P2R2GM5H6
Rugged Notebook
The S15C-P2R2GM5H6 rugged notebook comes equipped with the computing power and performance needed by the most demanding user and is designed with rugged features to protect the system from damage in the toughest working environments. The S15C-P2R2GM5H6 comes with a brilliant 15.6” HD display and is powered by the Intel i5 and i7 CPU platform. Standard features include an RS232 Serial port, TPM 1.2 data security and a Smart Card Reader. System options include a Bluetooth 2.1 module and a 1.3 mega pixel webcam. The S15C-P2R2GM5H6 is encased in magnesium alloy to protect the unit’s vital components and is tested to MIL-STD 810G specification for drop, shock and spill protection to insure the systems reliability in the field. The S15C-P2R2GM5H6 rugged notebook computer offers the power, performance and reliability.
Tough Features
Drop Resistant: Magnesium alloy case - 20 times stronger than ABS plastic, offering higher survival rate after drops and bumps. 26 drops from 76 cm height to plywood over concrete with unit off and display closed. 5 units to pass. Simulate MIL STD 810G,Method 516.6, Procedure IV.
Shock Resistant: Anti-shock mounting design protects LCD screen and hard disk drive from damage and data loss. Flexible HDD cable design absorbs shock from drops.
Simulate MIL STD 810G, Method 514.6, Procedure I, Category 4, Fig 514.6C-1 Represents Truck Transport on interstates highway for 1609km in 60 minutes
Spill Resistant: Spill resistant keyboard, touchpad and switches.
Spill resistant design stops spills from leaking into sensitive interior parts.
Optical Disk Lock: Exclusive optical disk tray lock prevents unintentional tray eject from drop and vibration.
Battery Protection: Double protection smart battery circuitry prevents damage caused by current or voltage surges and overheating.
Smart Battery Calibration helps fight the loss of battery capacity after repeated charge-discharge cycles.
Specification
Processor
  • Intel® i7 processor 620M
  • Intel® i5 processor 560M
  • Intel® i3 processor 380M
  • Intel® Pentium®Processor P6200
  • PGA socket 988
  • Chipset Intel® HM55 Chipset
    System Memory Two Dual Channel DDR III SODIMM Slots each for 1GB/2GB/4GB (8GB Maximum)
    Hard Disk Drive
  • 2.5” 9.5mm Hard Disk Drive, 250/320/500GB, SATA II 300
  • Anti Shock Mounted HDD (Protection From Vibration In Transporting)
  • Optical Media Device One internal optical drive for:
  • DVD Dual or DVD Super Multi (DVD-R / CD-RW / DVD-RW / DVD+RW_DL / DVD-RAM)
  • Display
  • 15.6” HD resolution (1366 x 768)
  • FHD+ resolution (1920 x 1080) (Option)
  • Graphics & Video
  • Intel® Intergrated graphics controller
  • Audio
  • Compliant to Intel® High Definition Audio (Azalia)
  • Stereo: two 1.5W speakers
  • Built-in Microphone
  • I/O Devices
  • One Smart Card socket
  • 2 button PS/2 Touchpad
  • 4 in 1 media card reader support MS/MS Pro/SD/MMC
  • One 1.3 MEGA Pixel webcam (option)
  • I/O Ports
  • Three USB 2.0 connectors
  • One Line-Out phone jack for external speakers
  • One IEEE 1394 port
  • One Mic-In phone jack for external microphone
  • One 9 pin D-sub connector for RS232 serial port
  • One RJ-45 jack for internal 10/ 100/ 1000Mbps Ethernet
  • One Type II Express Card 34/54
  • One DC-In jack
  • One 15 pins D-Sub connector for external monitor
  • Keyboard Spill resistant Keyboard (88 Keys with Windows Key)
    Function Keys:
  • Fn+F1: Bluetooth off/on
  • Fn+F6: Brightness Decrease
  • Fn+F11: Touch Panel on/ off
  • Fn+F2: 3G off/on
  • Fn+F7: Brightness Increase
  • Fn+F3: Touchpad off/on
  • Fn+F8: Volume Decrease
  • Fn+F4: Suspend mode
  • Fn+F9: Volume Increase
  • Fn+F5: Display Switch (LCD -> CRT -> LCD+CRT)
  • Fn+F10: Mute
  • Wireless / Communications
  • Ethernet: Integrated 10/100/1000 Mbps Ethernet
  • Wireless: Intel® Mini Express Wireless LAN 802.11 a/b/g/n or b/g/n network connection
  • Bluetooth 2.1 + EDR (option)
  • Optional WWAN 3G module and antenna(option)
  • The SIM card is secured behind a security-screwed door
  • Security
  • Kensington Lock
  • Administrator password
  • Boot password
  • TPM 1.2 Support
  • AC/ DC Adapter Input: AC 100-240V ~1.5A 50-60Hz, Output: 19V/4.75A/90W
    Battery
  • Standard: 6 cell 4400mAh Li-Ion battery
  • Optional: 9 cell 6600mAh Li-Ion battery
  • Dimensions & Weight
  • 370mm(W) x 276mm(D) x 37.5~40mm(H) / 14.6”(W) x 10.9”(D) x 1.48”~1.57”(H)
  • 3.0Kg/6.61lbs (with 6 cell battery) / 3.2Kg/7.05lbs (with 9 cell battery)
  • Certification FCC, DOC, CUL CE, CB
    Green Tech EPEAT Silver, RoHS Compliance
    TPM Standard Internal TPM 1.2 Data Security Protection

    Specifications are subject  to change without prior notice
